Chlo’

Saving water with salt electrolysis conversion

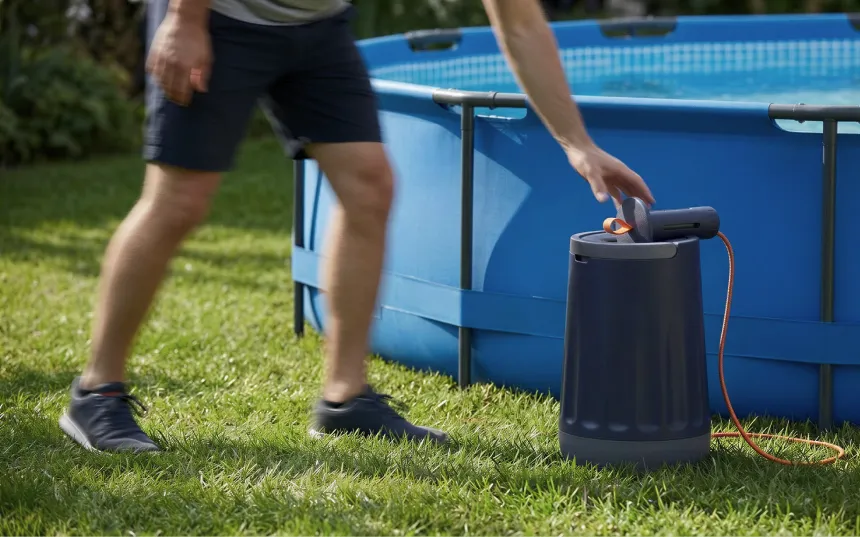

A person relaxing at the edge of a small private pool

What is Chlo’?

Chlo’ is an automatic salt pool chlorinator, built to extend the life of small-scale pools. It completely automates the process of chlorination using salt electrolysis, removing the need to cyclically empty the pool for maintenance.

Combat water waste

Private pools can waste up to 50000 Liters of water every year, due to bad maintenance practice and seasonal changes.

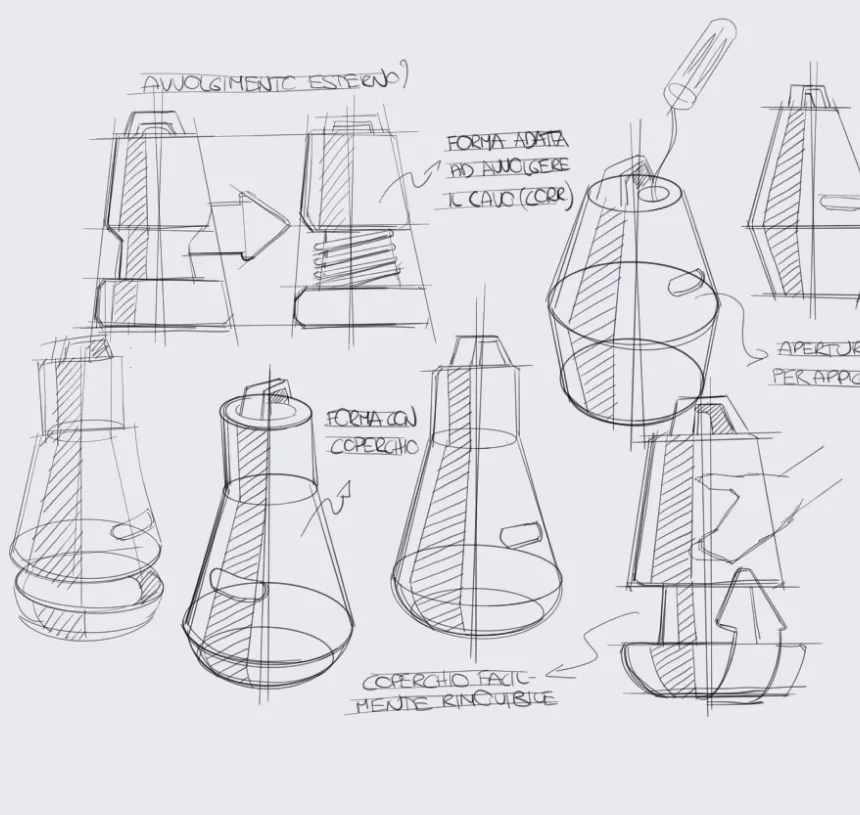

Concept line sketches exploring the form and proportions of the chlorinator

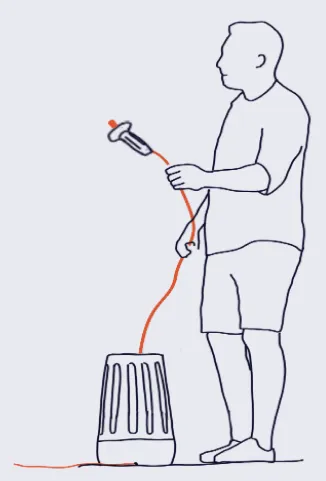

Line sketch of a person extracting the chlorinator pod from the base and connecting the power cable — **Connect** the device to the power outlet and extract the chlorinator pod from the slot.

Line sketch of a person dropping the pod into the pool and selecting a power mode — **Drop** it in the pool and select a power mode to activate chlorine production.

Line sketch of a person storing the chlorinator pod back in its slot — **Store** the chlorinator pod back in the slot when entering the pool.

Line sketch of a person relaxing by the pool — **Enjoy** your pool.

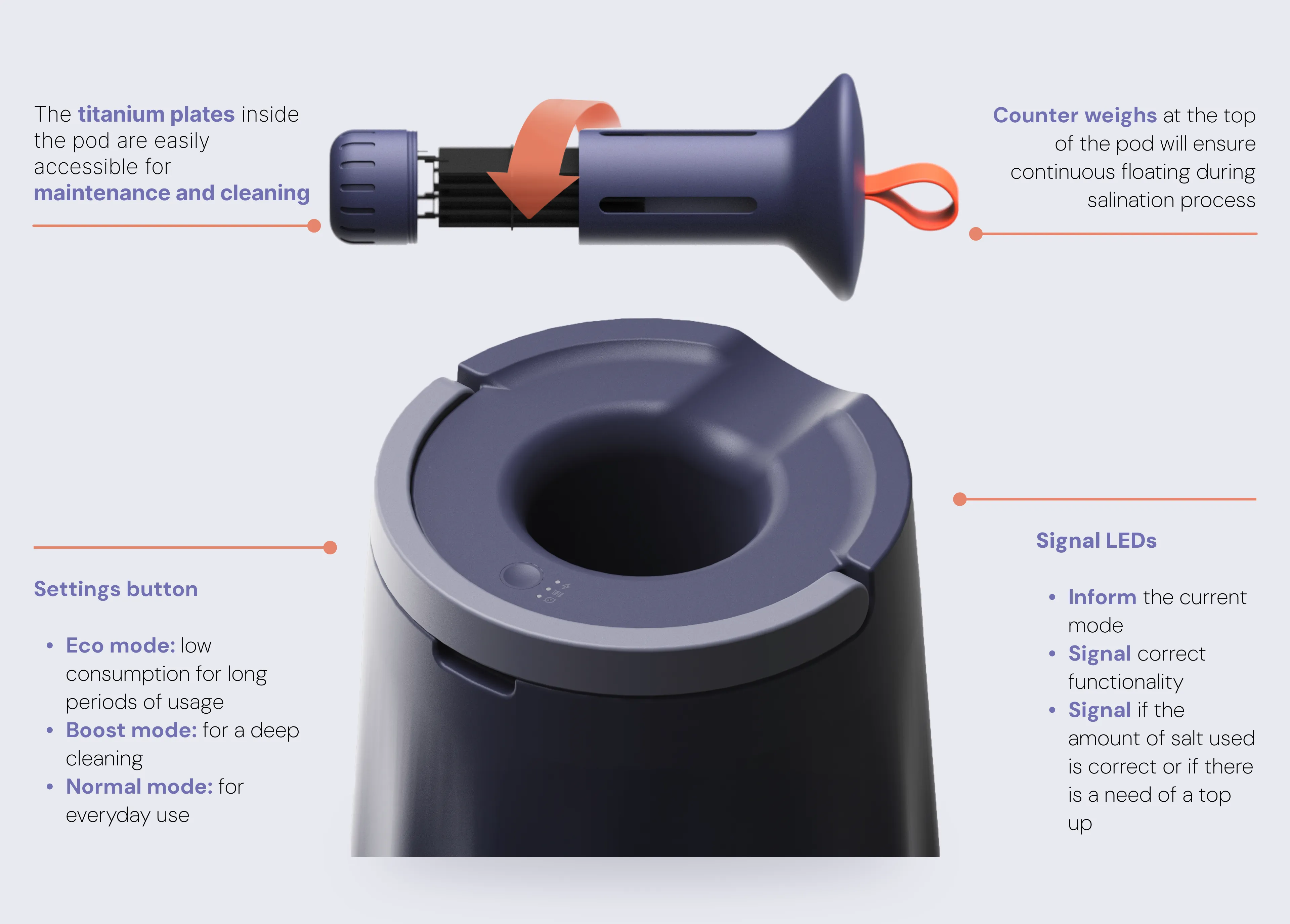

Exploded callout diagram of the pod. Titanium plates inside the pod are easily accessible for maintenance and cleaning; counter weights at the top ensure continuous floating during the salination process. The settings button offers Eco mode (low consumption for long periods of usage), Boost mode (for a deep cleaning) and Normal mode (for everyday use). Signal LEDs inform the current mode, signal correct functionality, and signal whether the amount of salt used is correct or if a top-up is needed.

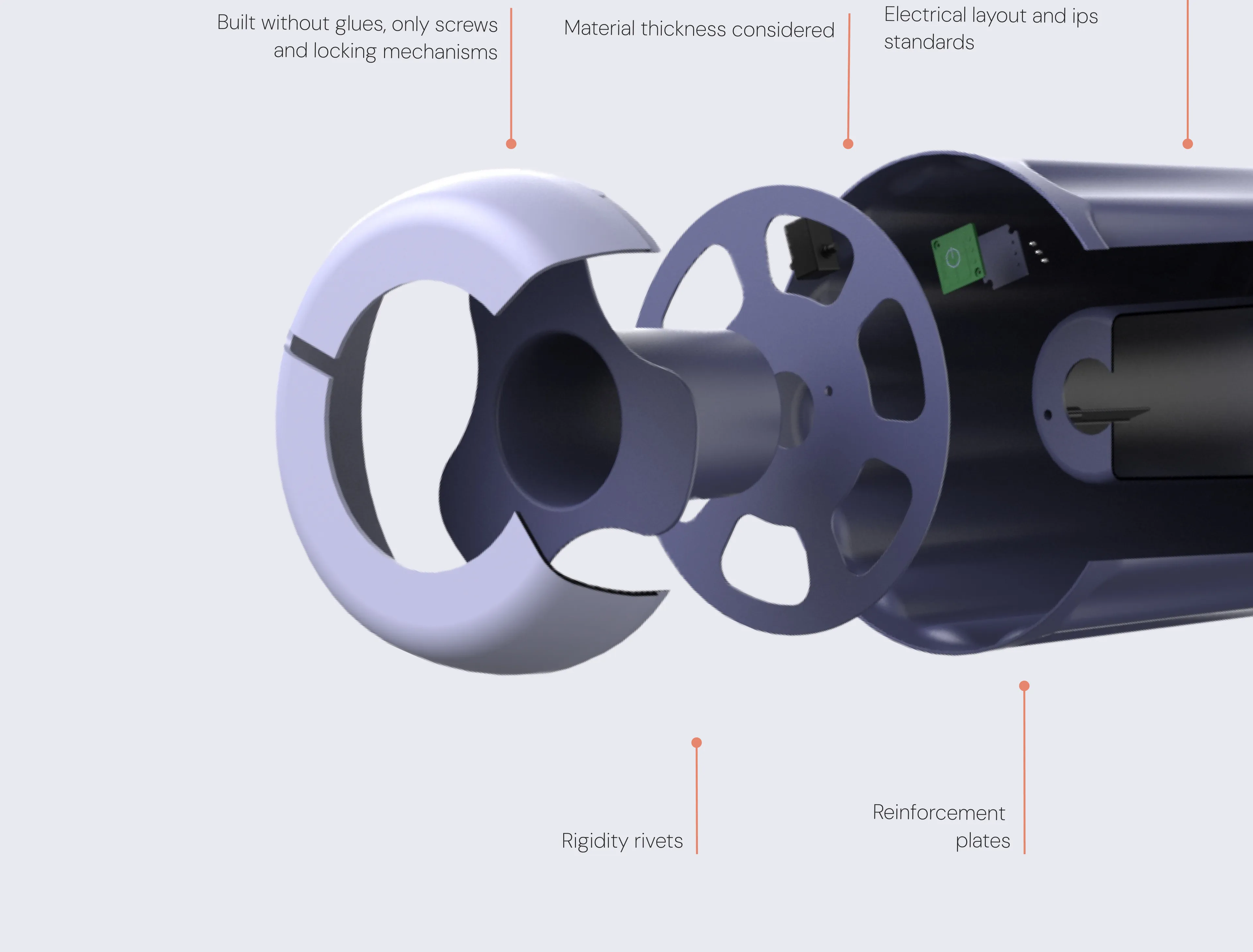

Exploded assembly diagram of the outer shell. Built without glues, only screws and locking mechanisms; material thickness considered; electrical layout and IPS standards; rigidity rivets and reinforcement plates labelled on the components.
